Rmoni sensor installation guide for Andy

In this guide, you will learn how to install and set up Rmoni in Andy in an establishment.

We explain step by step how to set up the RmoniWeb app, connect the gateway to the internet, install the probes, add a repeater if needed and configure the sensors.

When you finish, you will be able to check the system status to make sure that all devices are correctly installed and connected.

Before you start

Everything you need for the installation comes in the starter kit. Before you begin, check that you have:

  • The login credentials for the RmoniWeb app, which you will receive by email.
  • The gateway.
  • The probes you are going to install.
  • A repeater, if needed to guarantee coverage.
  • A magnet to activate the gateway and the probes.
  • Material to fix the devices in place, such as double-sided tape or cable ties.
  • The gateway's Ethernet cable (included in the kit).

You will also need a smartphone with access to the App Store or Google Play and with Bluetooth turned on.


1. Download and set up RmoniWeb

  1. Download the RmoniWeb app from the App Store or Google Play.
  2. Open the app.
  3. Enter the customer name provided. Change it if necessary.
  4. Enter your username and password.
  5. Sign in.

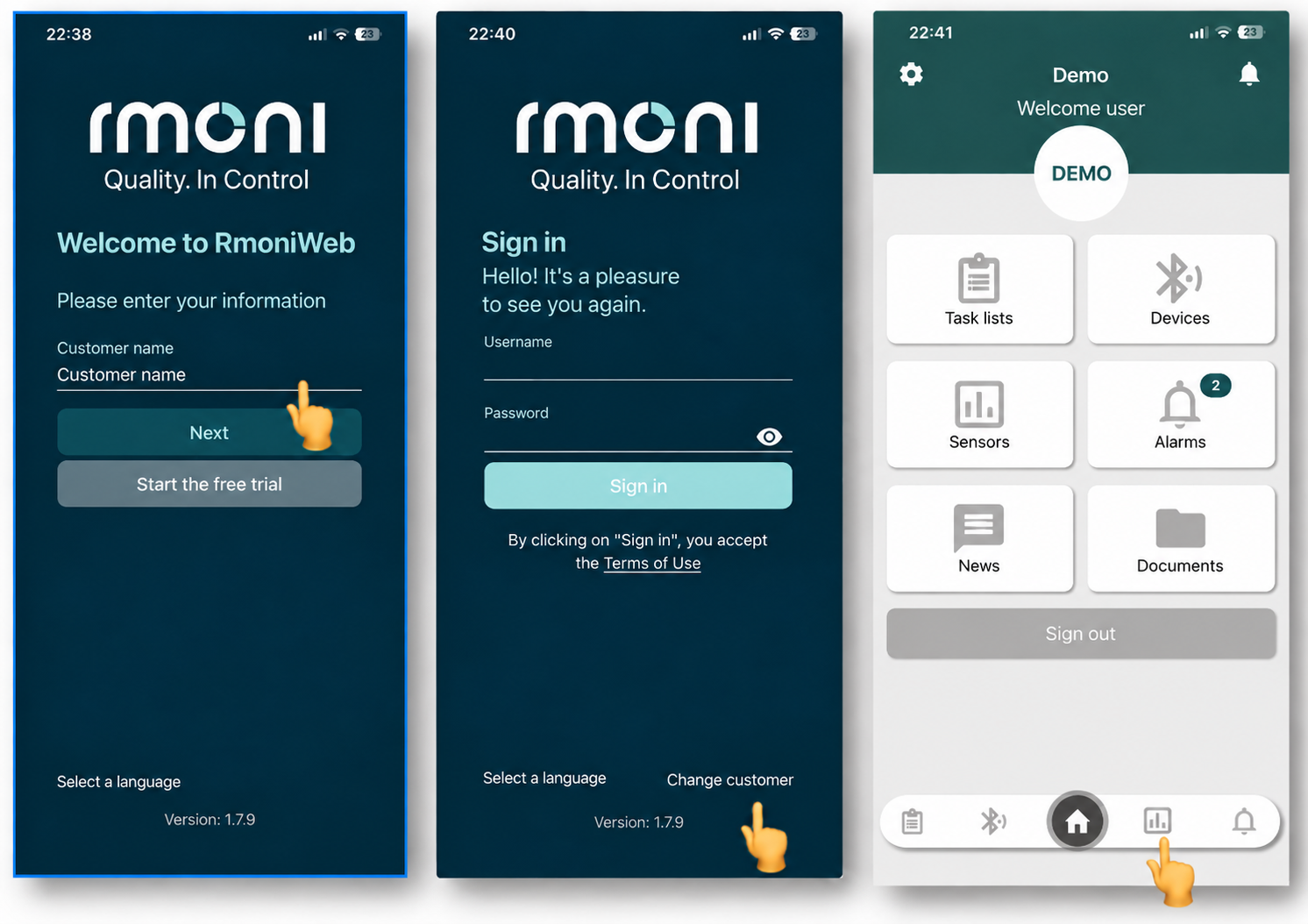

Sign in to RmoniWeb

Once you are signed in, you can start installing the devices.


2. Register the gateway

The gateway connects the devices installed in the establishment with Rmoni.

  1. Plug the gateway into the power supply.
  2. Scan the gateway's QR code from the RmoniWeb app.
  3. Register the gateway in the app.

This is the recommended option: the gateway connects to the internet over Ethernet.

  1. Connect the Ethernet cable to the gateway and to the customer's router.
  2. Wait until the SYSTEM ONLINE indicator stays solid green, without blinking.
If the LED is blinking or off: check that the cable is properly connected and that the customer's network has internet access.

Do you want to connect the gateway over Wi-Fi?

Follow the guide How to connect a Rmoni gateway via Wi-Fi and, once the gateway is online, continue with step 4.


4. Place the gateway

  1. Place it on the wall, close to the fridges and freezers.
  2. Install it at a height of more than 2 metres.
Place the gateway
Important: before you continue, check that the SYSTEM ONLINE indicator stays green.

5. Install and set up the probes

The probes record the temperature of refrigerated equipment.

Install and set up each probe by following these steps:

  1. Hold a magnet near the probe's QR code to activate it.
  2. Scan the QR code from the RmoniWeb app.
  3. Enter a name that clearly identifies the equipment where you will install the probe.
  4. On the Link sensor screen, check the device information: MAC address, organisational unit, sensor name and asset type.
  5. Set the Sensor alias. You can choose any name you like to identify the sensor. This is the name it will have in Andy.
  6. Fill in any missing fields and tap Save and continue.
Activate the probe with the magnet

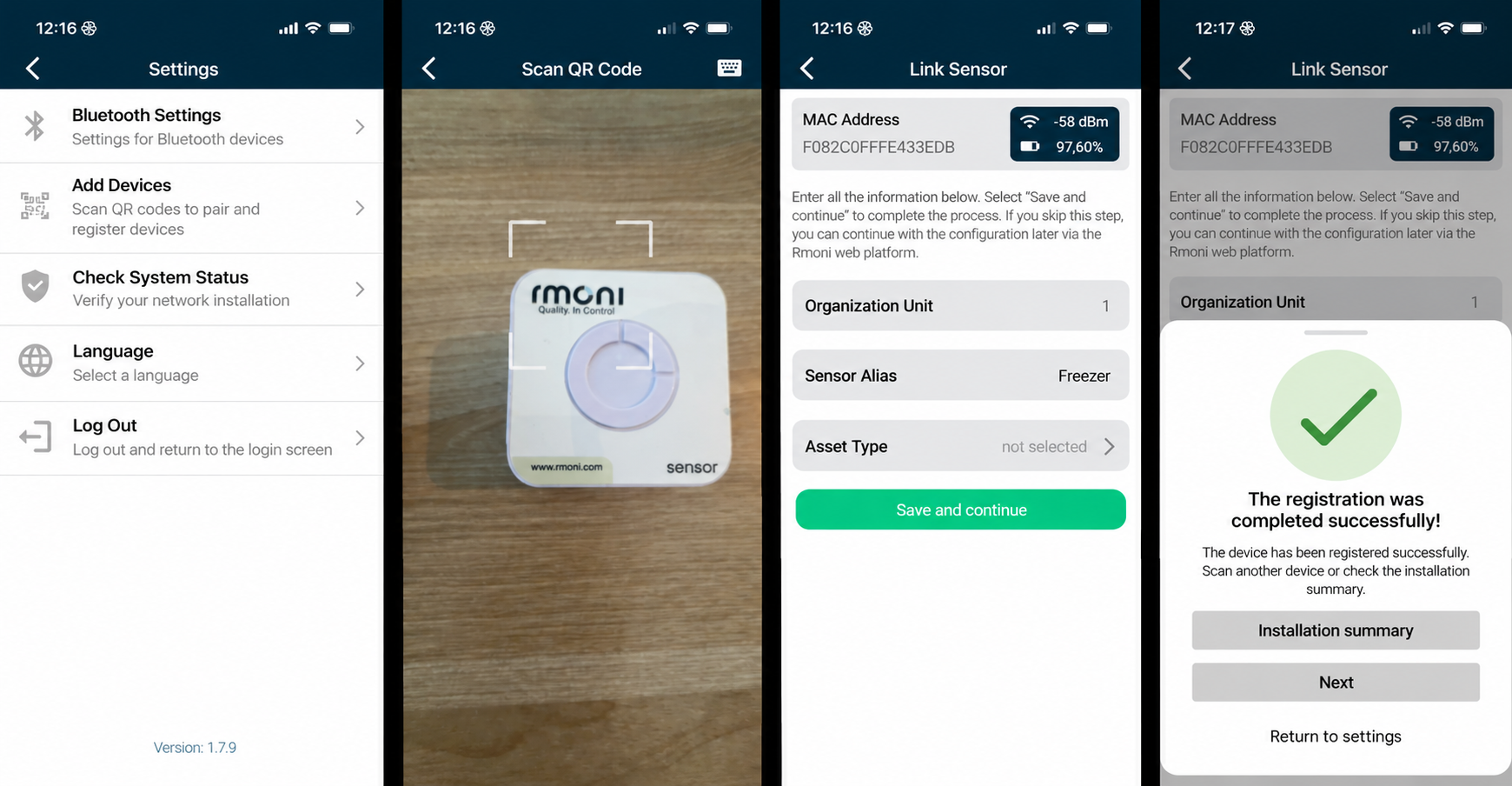

Sensor settings

The MAC address is detected automatically when you scan the device.

  1. Place the probe inside the corresponding fridge, freezer or refrigerated equipment.
  2. Fix it using double-sided tape or a cable tie, depending on the type of equipment.

Repeat these steps for each probe you need to install.


6. Install a repeater

This step is only needed when you need to extend the coverage between the devices and the gateway.

  1. Plug the repeater into the power supply.
  2. Check that the Connected indicator blinks blue.
  3. Scan the repeater's QR code from the RmoniWeb app.
  4. Register the repeater in the app.
  5. Place it on the wall, halfway between the gateway and the fridges or freezers that need better coverage.
  6. Install it at a height of more than 2 metres.
Install a repeater
Note: if all devices have a good connection to the gateway, you don't need to install a repeater.

7. Check the installation

Once all devices are installed and registered, check that the system works correctly before finishing the installation.

  1. Open the RmoniWeb app.
  2. Go to Settings > System health.
  3. Review the list of equipment.
  4. Check that all registered devices appear in green and with no issues.

Select a device to see additional information, such as:

  • Signal strength.
  • Battery level.
  • Firmware version.
  • Probe type.
  • MAC address.

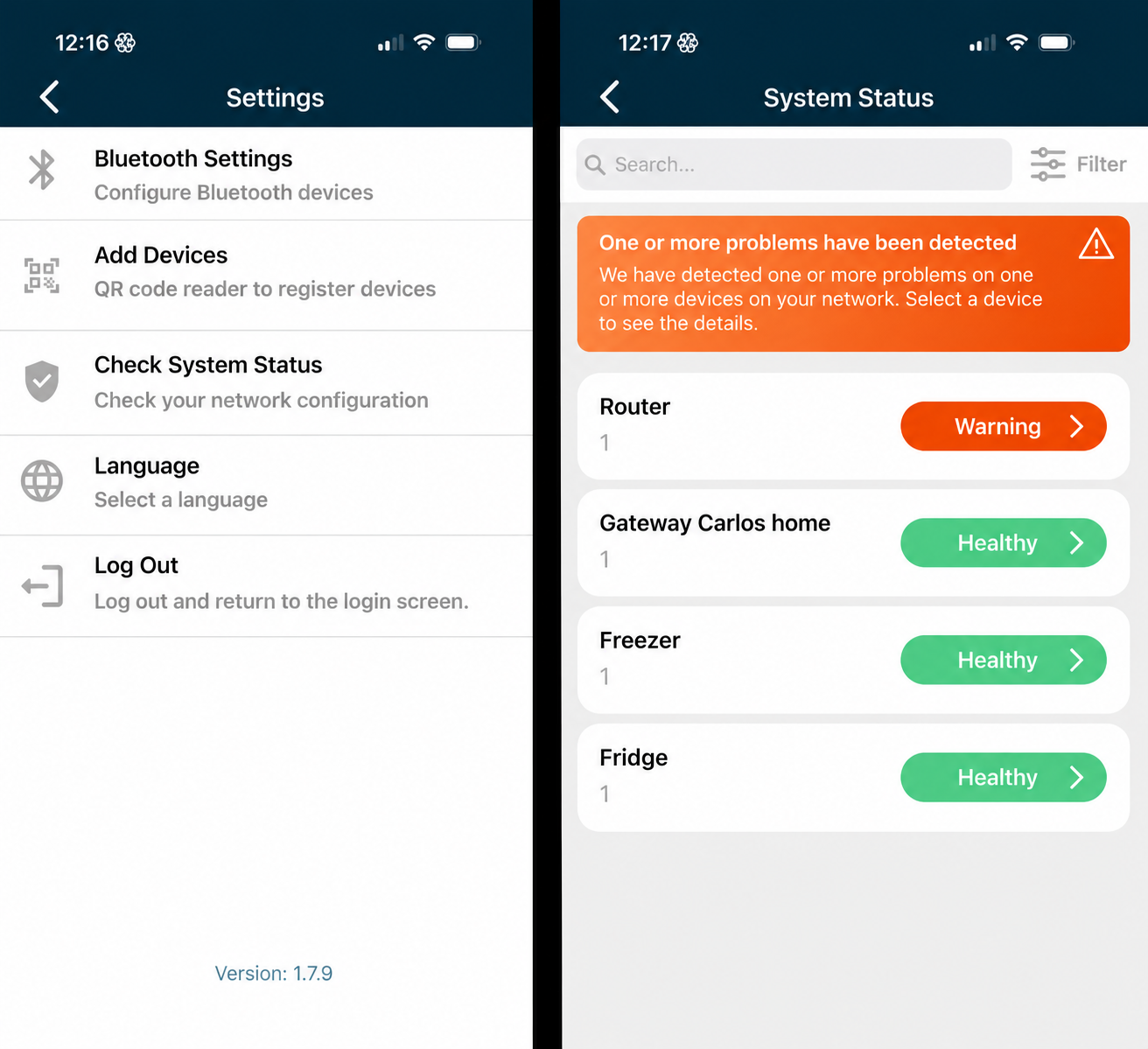

Check system health
If a device is not green: check its connection to the gateway or to the nearest repeater. Do not finish the installation until you have checked that all devices are correctly connected.

Reset a sensor if it doesn't send data

This step is not needed if everything works correctly. However, a sensor may appear green in the RmoniWeb app and still not send data. If that happens, reset it:

  1. Keep the magnet in contact with the sensor.
  2. Wait for the light sequence to finish: blue blinking, then solid blue and finally white.
  3. When the light turns white, the sensor has been reset.

Sensor setup in the Andy APP

To set up the sensors from the Andy APP, go to Settings > Sensors.

Once there, the list of available sensors appears. Linking with Rmoni is done automatically, so no additional setup is needed.

The sensors appear in Andy with the Sensor alias defined during their setup in the RmoniWeb app.

If the devices you expect don't appear, tap Refresh to update the list. After refreshing, you will see the available sensors and their linking status.

If a sensor appears as not linked, open it to access its settings. There you can assign the corresponding equipment, which is the one that will have the alerts and incidents for that sensor set up.

Process:

  1. Go to Settings > Sensors.
  2. Tap Refresh if the devices don't appear.
  3. Open the sensor that appears as not linked.
  4. Assign the corresponding equipment.
Sensor setup in the Andy APP

How do I know the installation has been completed correctly?

The installation is complete when:

  • The gateway is connected to the internet and SYSTEM ONLINE is green.
  • All probes are installed and registered correctly.
  • The repeater is connected, if you needed to install one.
  • All devices appear in green in Settings > System health.
  • There are no devices pending registration or connection problems.

If any device doesn't appear correctly, check its installation and its connection to the gateway or repeater before finishing.
