Labels are badly printed
If the labels are printed incorrectly, you should check two key aspects:
Label roll placement
To ensure correct label printing, first check how the label roll is positioned. To do so, follow the steps shown in the following video:
TD-4550DNBW
Print head cleaning
If your labels are printed with blurry or broken text, you will need to perform a print head cleaning. Follow the steps shown in the following video:
TD-4550DNBW
TD-2125DNBW
See Brother’s guide on How to clean the printer
Sensor
Another key component for proper printing is the sensor. It is located inside the printer. Incorrect sensor positioning is a clear sign that printing is not being performed correctly.
Possible symptoms
- Label misalignment with the paper
- Printing blank labels
- On-screen message: Define the roll correctly
- Red status button
To avoid these situations, it is essential that the sensor is correctly positioned. To adjust it, you must first open the cover. Once opened, the sensor can be found at the bottom.

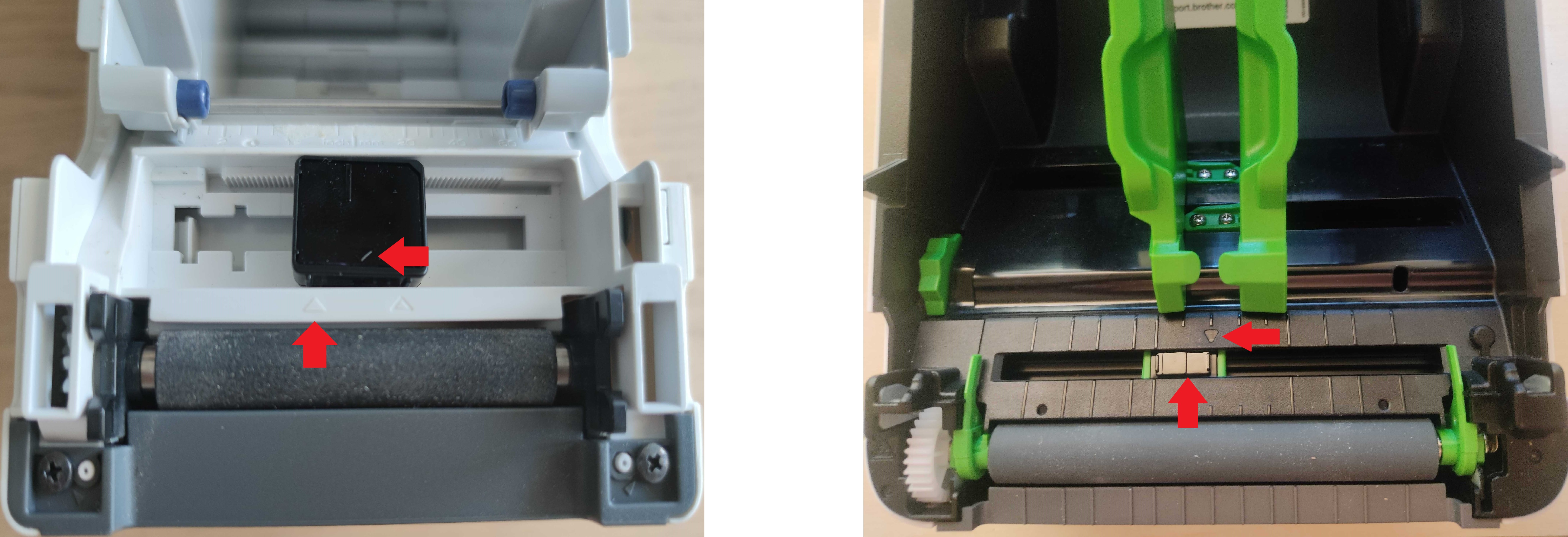

To position the sensor correctly, it must be moved until the arrows face each other, as shown in the following images:
TD-2125 TD-4550
The following video shows how the sensor should be positioned correctly:
TD-4550DNBW
TD-2125DNBW
The key to correctly positioning the sensor is to hear a click when it is properly set. Adjust it until you hear the sound—this means the sensor is perfectly aligned.
If it still prints misaligned, do the following on the printer: Settings > Media > Calibration
Done! This correction confirms that the printing issue was caused by incorrect sensor positioning, a key component for proper label printing.
